SCORPION HK5 4020 850Kv Boxed AS NEW
Helicopters / by Dave Attis / 37 views / New
£150.00

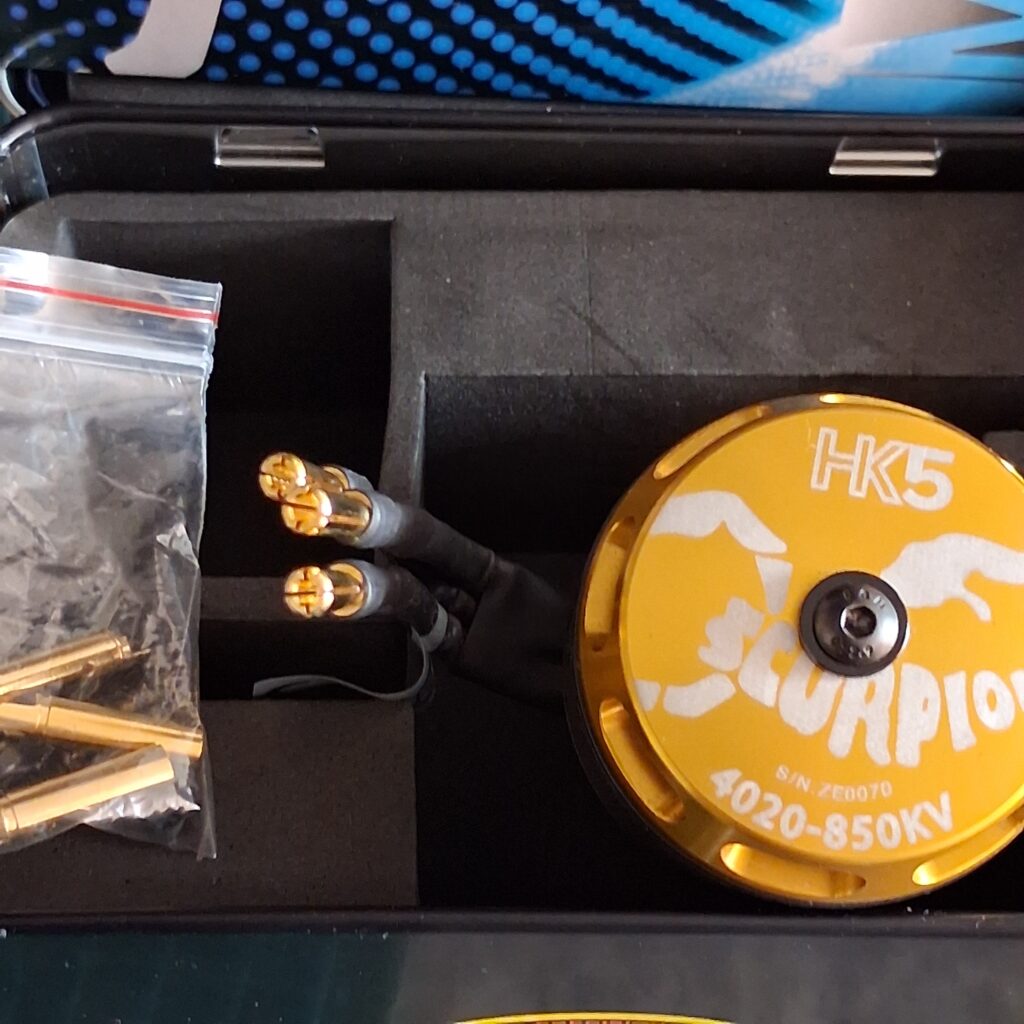

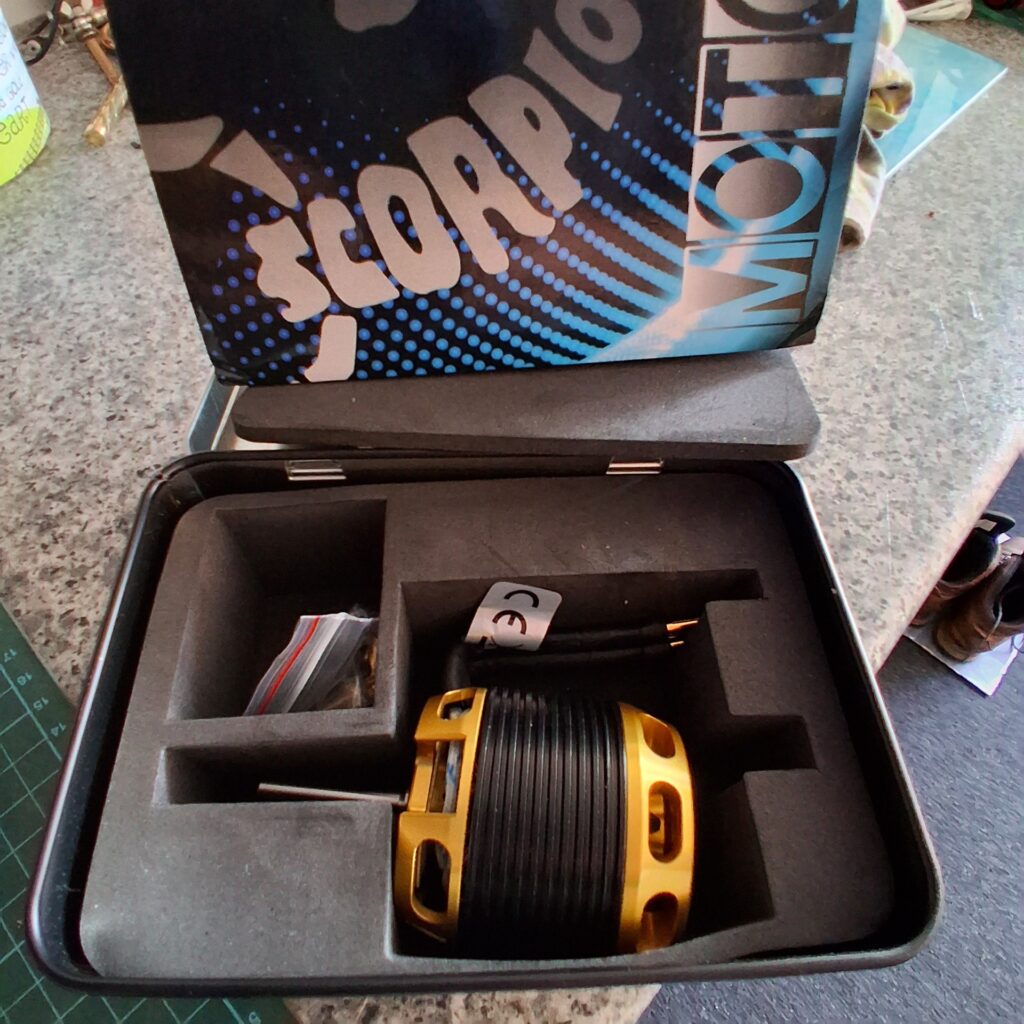

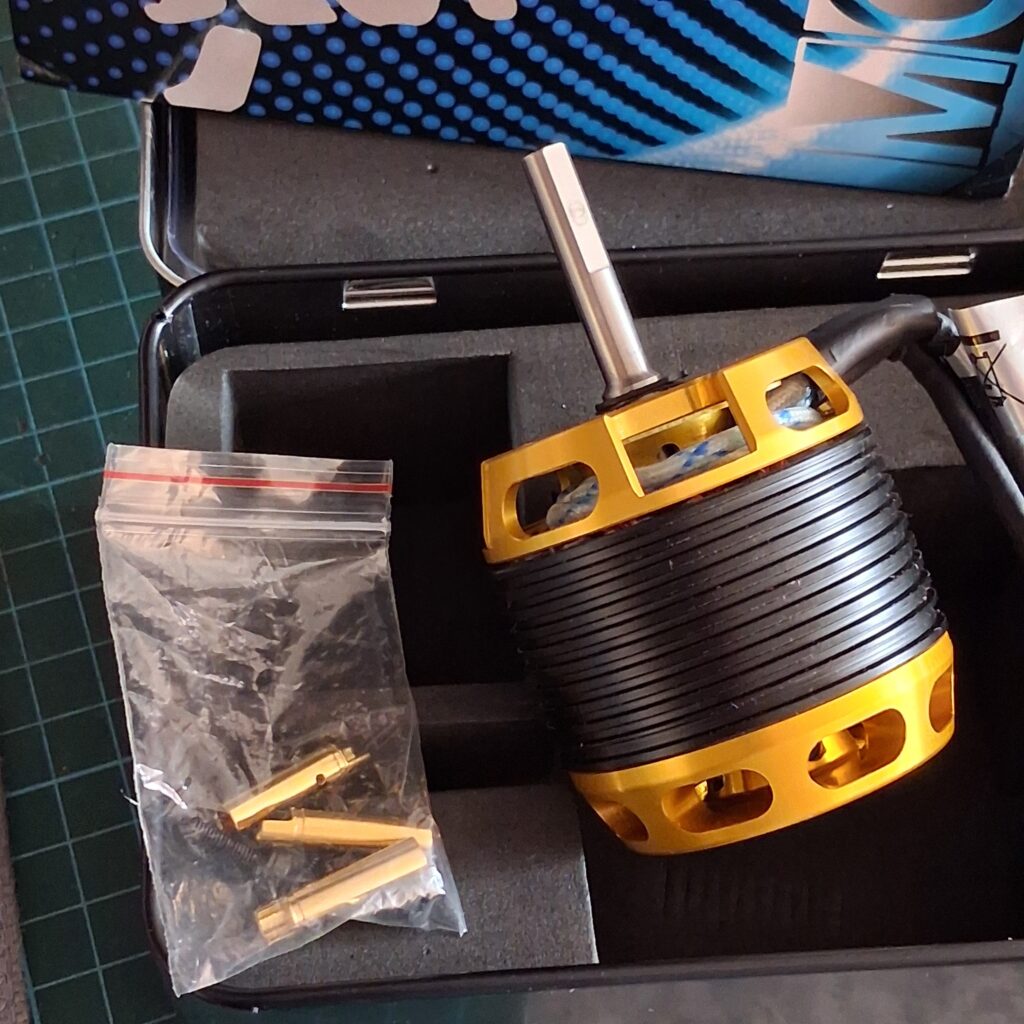

Scorpion HK5 Brushless Motor 4020 850Kv
As New Has Been Fitted Very Little use
Collection Welcome or Could Post At Cost
(Could Also Take To The AHA Fly in At Charmouth Saturday 10th Oct If Helps)
£150.00
Motor Spec
850KV RPM/Volt
Weight 325.6g Grams ( 11.48oz)
Motor Body Dimensions 49.5mm x 52.00mm (1.95″ x 2.05″)
External Shaft Dimensions 5.98mm x 32mm (0.235″ x 1.26″)
Continuous Current 85 Amps
Continuous Power 1900 Watts
Peak Current 120A (2 seconds)
Peak Power 2664 Watts (2 seconds)
Max Lipo Cell* 6s
Stator Diameter 40 mm (1.57 in)
Stator Thickness 20 mm (0.79 in)
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 5+5 Turn Delta
Motor Wire 1.4mm
